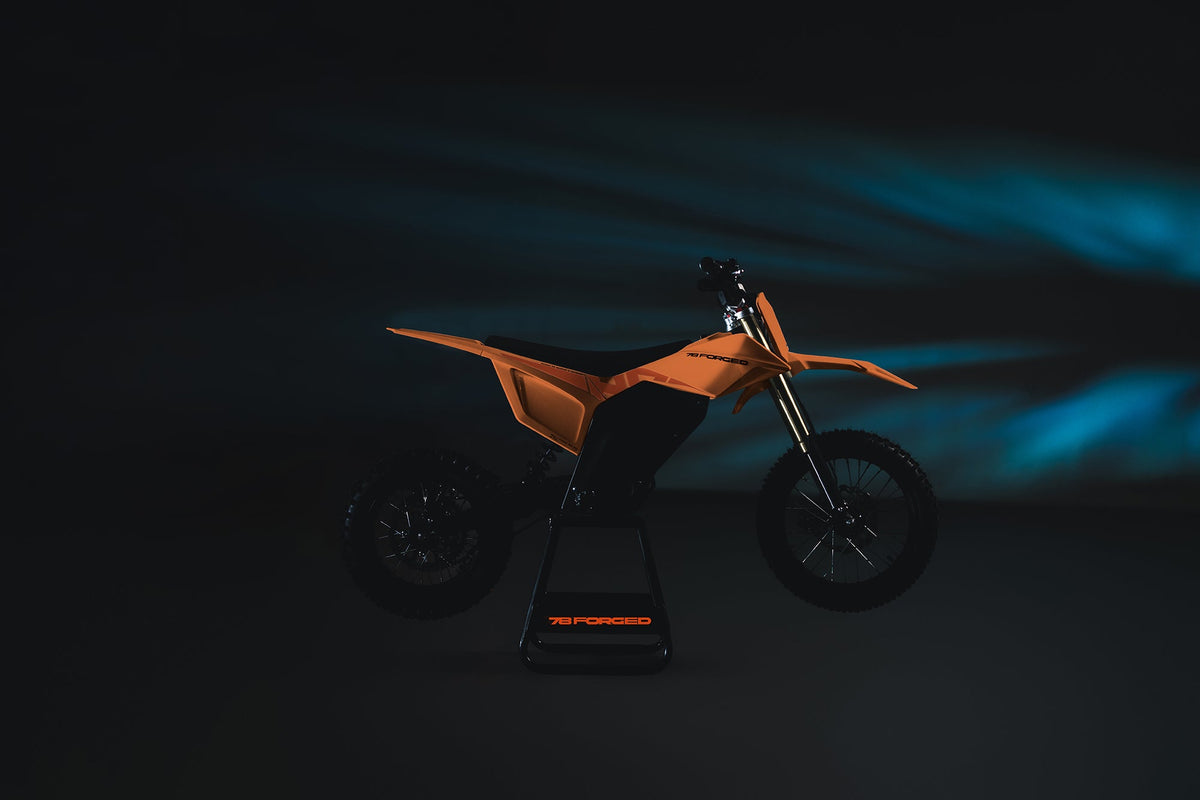

78 Forged Phase I Electric Dirt Bike

78 Forged Phase I Electric Dirt Bike

A youth-focused 60V electric dirt bike designed and assembled in California, with three selectable ride modes and a top speed of up to 45 mph.

Performance

• 60V electric platform
• 4.5 kW peak / 2.0 kW nominal power
• Three ride modes: up to 25 mph, 35 mph, and 45 mph
• Maximum claimed range: up to 40 miles in Mode 1 and up to 20 miles in Mode 3
• 35 Nm motor-shaft torque

Battery & Electrical

• 60V / 20Ah lithium-ion battery with Samsung 21700 cells
• IP67-rated battery and PMSM motor
• 80A vector controller
• 60V 5A charger
• TFT color display

Chassis & Suspension

• Steel frame
• Hydraulic front fork with 120 mm travel
• Hydraulic rear shock with 65 mm travel
• Front and rear hydraulic DOT brakes with 190 mm discs
• 60/100-14 front tire
• 80/100-12 rear tire
• 420 chain with 11T front / 53T rear sprockets

Dimensions

• Wheelbase: 44.4 in
• Seat height: 28 in
• Ground clearance: 11 in
• Curb weight: 119 lb
• Load capacity: 170 lb

Recommended age: 8+. Intended for off-road/private-property use. Adult supervision and appropriate protective equipment are recommended.
